A 100 inch interactive display is a 4K UHD commercial touchscreen with a built-in Android computer, 40-point touch and conferencing camera — the largest single-panel format before you move to a tiled LED video wall. The UNiQ ultima Series UD100ultima is the model LiveInSmart supplies, installs and maintains across India.
AI feature stack — Gemini/Assistant integration, AI Q&A, transcription and content search.

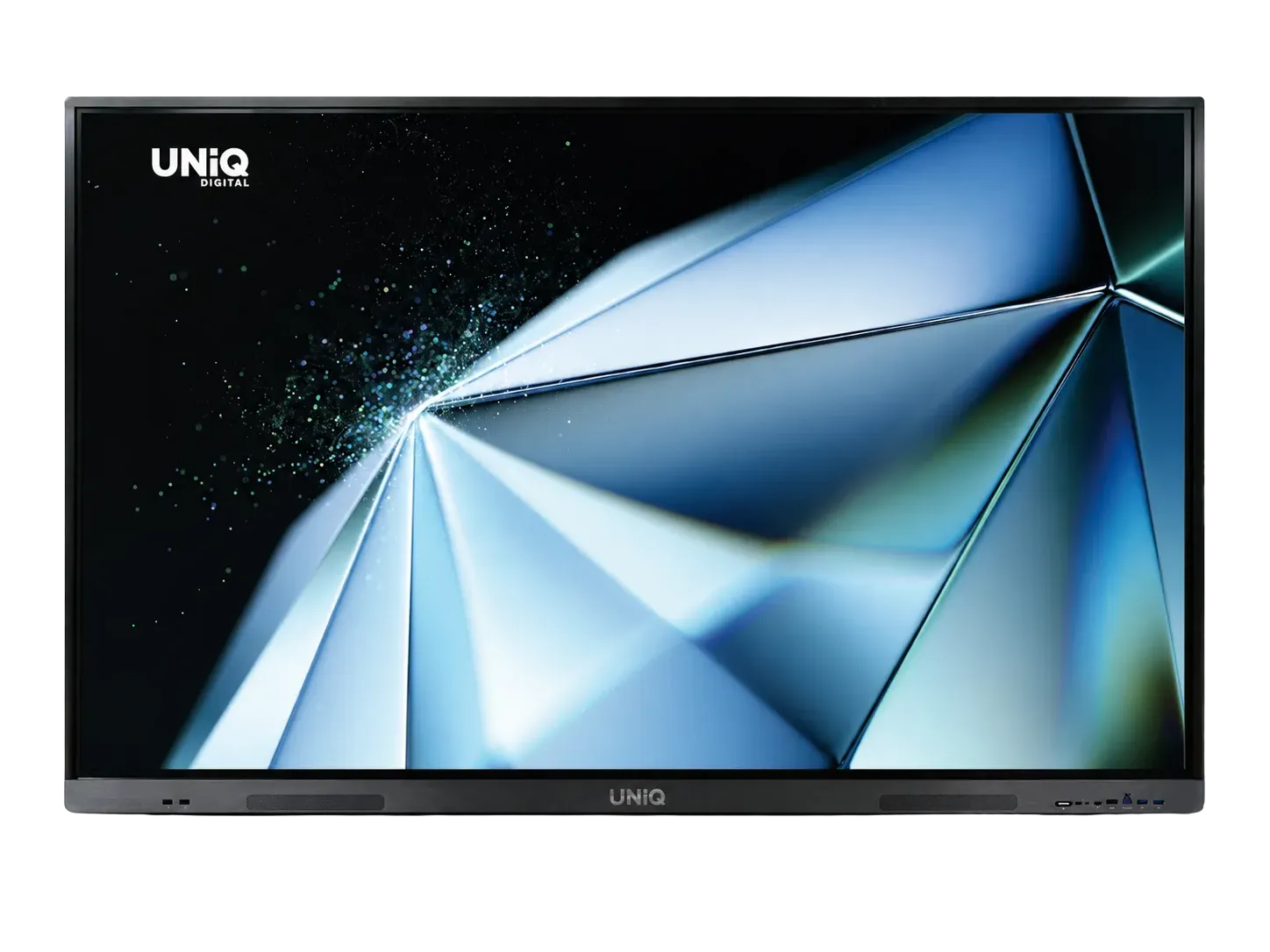

UD100ultima — 100" 4K UHD, 40-point IR touch, H9 anti-glare hardened surface.4K UHD DLED panel, 500 nits adjustable, 200000:1 contrast, 178°/178° viewing angle.AI feature stack — Gemini/Assistant integration, AI Q&A, transcription and content search.UNiQ ClearView AI 50MP camera (110° FOV) and ClearPickup 8-mic array built into the bezel.Wireless presentation from any device — MiraCast, Chromecast, AirPlay or the dedicated app.Co-board — two ultima displays sharing one live whiteboard, no extra app or subscription.
Key Features at a Glance — UNiQ ultima 100 Inch
Answer first: the six things that separate the UD100ultima from a generic 100 inch touch screen are on-device AI, a 50MP conferencing camera, 40-point touch, Android 16 with OTA, Co-board dual-display linking and NFC-secured multi-user profiles.
AI-powered, on-device | NPU edge AI runs assistant, Q&A, transcription and image search without a cloud round trip

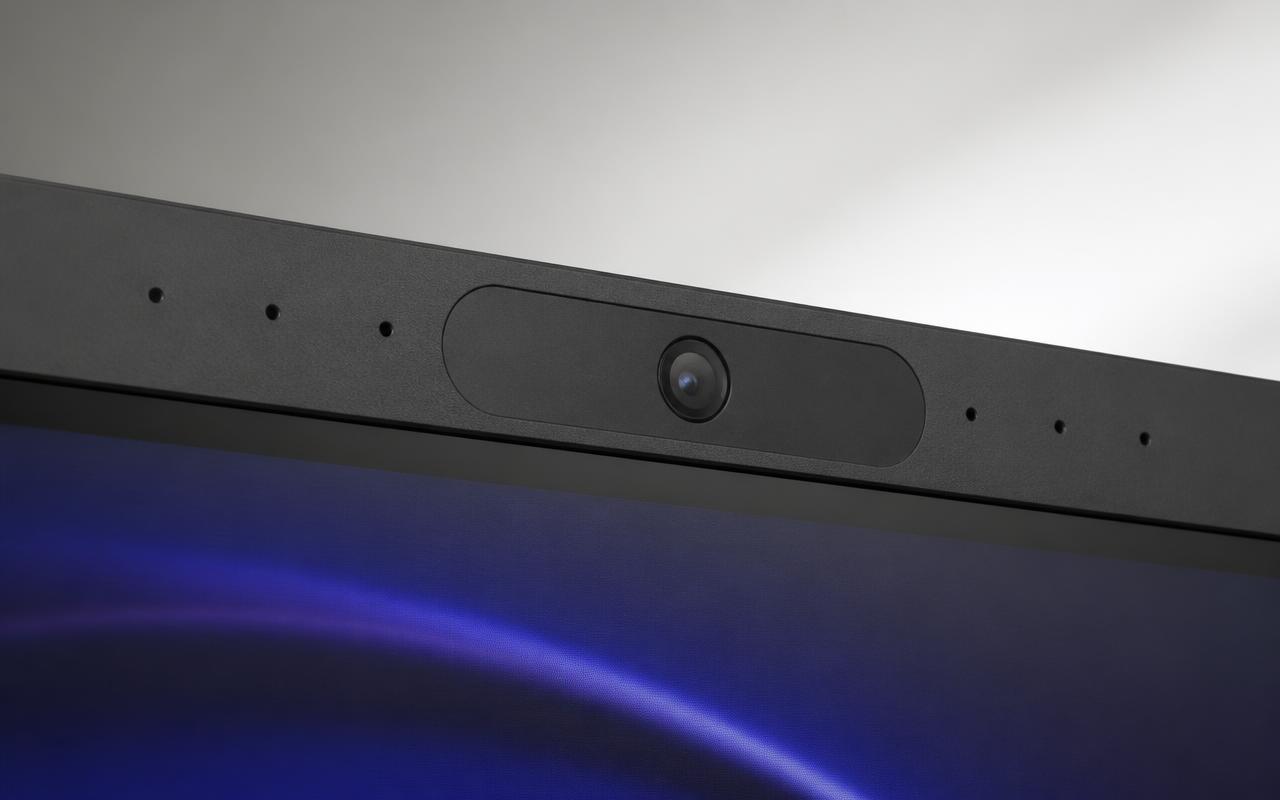

AI conferencing built in | ClearView 50MP AI camera at 110° FOV + ClearPickup 8-mic digital array + 2×20W ClearVoice speakers
One-cable BYOM/BYOD | Full-functional USB-C carries audio, video, touch-back, data, peripherals and power
Built to last | 100,000-hour LED life, 500 nits, 200000:1 contrast, OPS slot for a Windows module
What Is a 100 Inch Interactive Display?
A 100 inch interactive display is a single commercial-grade 4K touchscreen (2259 × 1315 mm) that combines the projector, screen, whiteboard, speakers, camera and room PC into one wall-mounted device. Unlike a projector it needs no lamp, no darkened room and no annual recalibration; unlike an LED video wall it arrives as one factory-calibrated panel with no seams and no controller rack.
Viewing distance: comfortable for rooms with a back row 6–14 metres from the wall
Seats served: typically 40–120 people depending on layout
Replaces: projector + screen + whiteboard + soundbar + UC camera + room PC
Room prep: 400×800 VESA on a load-bearing wall, one 500W circuit, one LAN drop
Verified 100 Inch Specifications (UNiQ ultima Series)
Every figure below is taken from the UNiQ ultima Series datasheet for the UD100ultima. Specifications are taken from the UNiQ ultima Series product sheet and are subject to change without notice by the manufacturer.
Screen size | 100 inch
Touch | IR, 40-point, ≤4ms response, ±2mm accuracy — finger, pen or object
In the box | Remote, power cord, 2× stylus, wall mount, 1.8m touch USB cable
UD100ultima vs UD100ultima+ — What Actually Differs
Both models share the same 100 inch 4K panel, 40-point touch, Android 16 platform, AI camera and microphone array. The documented distinction on the datasheet is the USB-C AV port count on the ultima+ variant. If your rooms run heavy BYOM (bring-your-own-meeting) with single-cable USB-C docking from multiple positions, the + is the one to specify.
Panel, touch layer, SoC, RAM/ROM options, camera and audio | Identical across both
USB-C full-functional AV ports | Higher count on UD100ultima+
Best for | ultima: fixed-PC or HDMI-led rooms · ultima+: BYOD/BYOM-heavy rooms with multiple table positions
Both support | OPS Windows module, NFC login, Co-board, MiraCast/Chromecast/AirPlay
AI Features That Actually Run On the Panel
The ultima Series does AI processing at the edge on its own NPU, so transcription, gesture control and content search keep working without a cloud round trip — the practical difference in a classroom or boardroom with unreliable Wi-Fi.
AI Google Assistant / Gemini integration for voice-driven control and lookup
AI gesture-based camera controls — framing and tracking without a remote
AI intelligent Q&A support directly on the panel
AI speech-to-text transcription for meeting and lecture notes
AI content search and AI image search
AI-powered classroom support — AI-generated quizzes, lesson plans and curriculum-aligned content
Co-board — links two UNiQ ultima displays across locations for real-time shared whiteboarding, no extra app or subscription

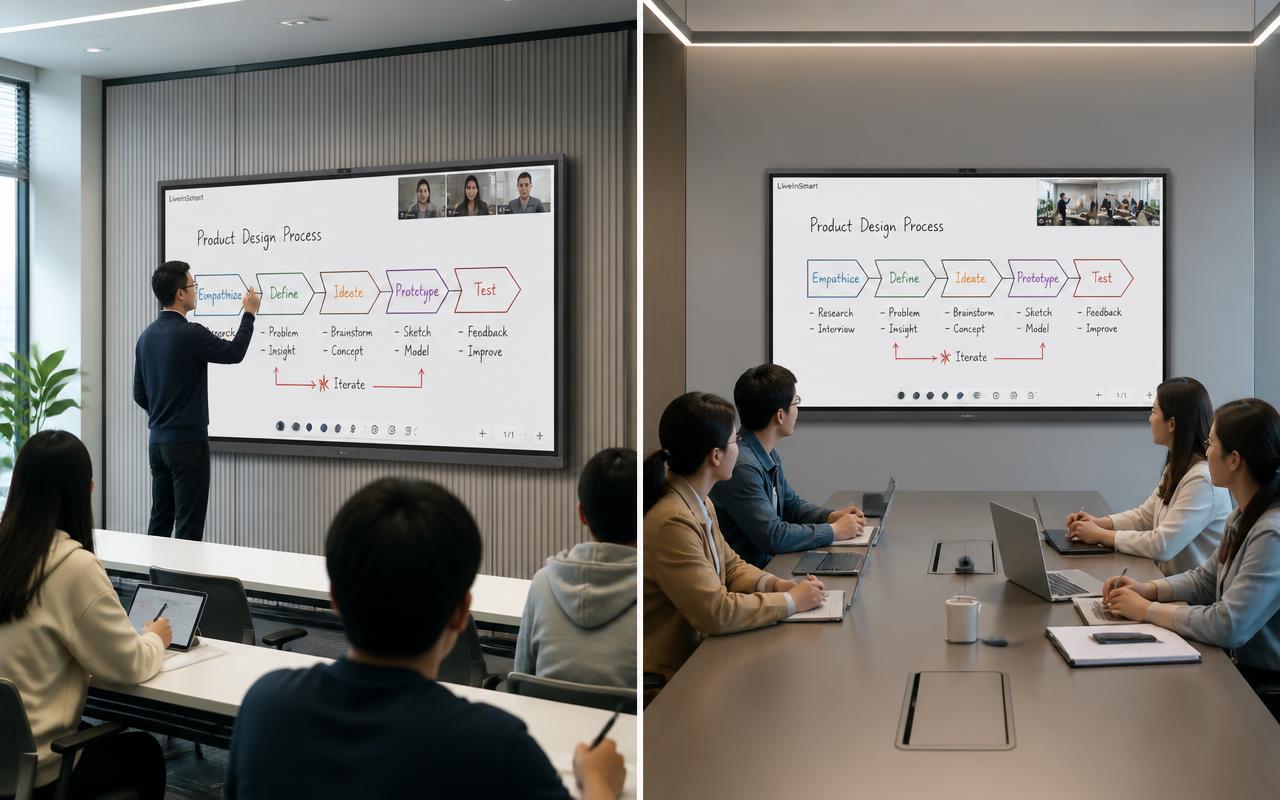

Co-board — Linking Two 100 Inch Displays
Co-board pairs two UNiQ ultima Series displays so a whiteboard session on one appears live on the other, with two-way audio and video. No extra application, no per-seat subscription. It is the feature that turns two rooms — or two campuses — into one teaching space.
Real-time shared whiteboarding across two ultima displays
Two-way audio and video using the built-in 50MP AI camera and 8-mic array
No additional app, licence or subscription cost
Typical uses: main campus to satellite campus, HQ boardroom to branch office, lab overflow rooms
Connectivity and BYOD
Answer first: yes, a 100 inch UNiQ ultima can be driven from a laptop with one USB-C cable, wirelessly from any OS, or from an internal OPS Windows PC — all three at once if the room needs it.
Wireless: MiraCast (Windows), Chromecast (Android/Chrome), AirPlay (macOS/iOS), or the UNiQ app
Wired: 2× HDMI IN rear + 1× HDMI IN front, DP, USB-C full-functional AV in and out
BYOM: optional USB-C dongle with 4K casting for one-tap room joins
Control & management: RS232, 2× RJ45, centralised DMS device management across a fleet
Where a 100 Inch Display Makes Sense
The 100 inch format earns its price in rooms where 86 inch is legibly too small from the back row but a video wall is operationally too complex.
College lecture halls and auditoria with 60–120 seats
Corporate boardrooms and town-hall rooms with multi-row seating
Government conference and command rooms needing NFC-secured multi-user access
Training centres, simulation labs and medical teaching rooms
Hotel and convention pre-function briefing spaces
Explore the Feature Deep-Dives
Each headline capability has its own page with the datasheet detail, deployment notes and FAQs an evaluation committee will ask for.
LiveInSmart supplies, installs and maintains 100 inch interactive displays from four operating bases. Each city page carries local coverage, response times and site-survey booking.
Why LiveInSmart for a 100 Inch Interactive Display
LiveInSmart is not a reseller. We are a single-vendor solution partner: Consultation → Requirement Analysis → Solution Design → Product Supply → Installation → Training → Annual Maintenance & Support. A 100-inch panel weighs 86 kg and needs a 400×800 VESA mount on a structurally sound wall, a 500W circuit and a commissioned network — this is not a courier-and-forget product, and one accountable team from survey to AMC is the difference between a working room and a warranty argument.
Structural wall survey before quoting — we confirm the wall can carry 86 kg plus mount before a panel is ordered
Live UNiQ ultima demo at the Hyderabad (Ameerpet) and Vijayawada (Ashok Nagar) experience centres
In-house installation crew — mounting, cabling, OPS commissioning, network onboarding and NFC user provisioning
Teacher / presenter onboarding included, plus AMC with defined response SLAs across Telangana and Andhra Pradesh
1000+ AV installations delivered — schools, colleges, government offices and corporate boardrooms
Single point of contact for the full 5–7 year life of the display
Get a Quote for 100 Inch Interactive Display
Send us the room dimensions, seating count, the furthest viewing distance and how the room is used. You get a sized configuration with model, mount, accessories and an itemised price — usually the same working day. LiveInSmart is not a reseller. We are a single-vendor solution partner: Consultation → Requirement Analysis → Solution Design → Product Supply → Installation → Training → Annual Maintenance & Support.
Free site survey, wall-load check and room-sizing report
Book a hands-on demo — Hyderabad (Ameerpet) or Vijayawada (Ashok Nagar)
Experience Centre · Hyderabad
Visit our Hyderabad showroom
Book a free demo at the LiveInSmart Hyderabad Experience Centre — listen to Dolby Atmos, see 4K laser projectors and walk through live home-automation scenes before you buy.
Pancom Business Centre, Mumbai Hwy, Nagarjuna Nagar Colony, Ameerpet, Hyderabad 500073
How much does a 100 inch interactive display cost in India?+
A 100 inch 4K AI interactive display typically lands between ₹5.5 lakh and ₹9.5 lakh depending on RAM/ROM configuration (8+128GB vs 16+256GB), the ultima or ultima+ variant, and whether an OPS Windows module, floor stand or extended AMC is included. Installation and training are quoted with the panel.
Is a 100 inch interactive display better than a projector?+
For daily-use rooms, yes. There is no lamp to replace, no ambient-light washout at 500 nits, no keystone or focus drift, and no annual recalibration. A projector still wins only where the image needs to exceed roughly 120 inches or the display wall cannot carry 86 kg.
What is the largest interactive flat panel size available?+
110 inch is the largest mainstream interactive flat panel; 100 inch is the largest widely stocked and serviced size in India, and is the practical ceiling before a tiled LED video wall becomes the better engineering choice.
What resolution and brightness does a 100 inch interactive display support?+
The UNiQ UD100ultima runs 4K UHD on a DLED panel at 500 nits adjustable brightness, with a 200000:1 contrast ratio and 178°/178° viewing angle.
How many touch points does a 100 inch interactive panel support?+
The UD100ultima supports 40-point IR touch with response under 4ms and positional accuracy of ±2mm, usable with finger, pen or any other object.
What operating system does the UNiQ 100 inch interactive display run?+
It runs Android 16 with OTA upgrade support, on an RK3576 SoC with dual ARM Cortex CPU clusters (A72×4 + A53×4) and a Mali G52 MC3 GPU.
Can two 100 inch UNiQ displays be linked for remote collaboration?+
Yes. The Co-board feature connects two UNiQ ultima Series displays for real-time shared whiteboarding, content sharing and two-way audio and video, with no extra app or subscription.
How heavy is a 100 inch interactive display and what mount does it need?+
86 kg net (142 kg gross, boxed), measuring 2259 × 1315 × 134 mm, on a 400(H) × 800(V) mm VESA pattern. It needs a masonry or reinforced wall, or a heavy-duty floor stand rated above 100 kg.
Does LiveInSmart provide installation and AMC for 100 inch displays?+
Yes. Installation, teacher/presenter training and annual maintenance with defined response SLAs are provided in-house across Hyderabad, Vijayawada, Visakhapatnam and Warangal, and pan-India for project deployments.
