UNiQ ultima Series 100 inch 4K interactive display front view with anti-glare touch surface and front-facing ports

Feature Deep-Dive · Conferencing

50MP AI Camera Interactive Display

Answer first: the UNiQ ultima integrates a 50MP ClearView AI camera with a 110° field of view, an 8-microphone ClearPickup digital array and 40W of ClearVoice stereo audio — so a boardroom needs no separate video bar, ceiling mic or soundbar.

Book Free Demo Call Now WhatsApp

Corporate boardroom with a 100 inch interactive display running a video conference grid alongside a shared whiteboard — Boardroom deployment — split-screen video call plus live whiteboard on one 100 inch surface.

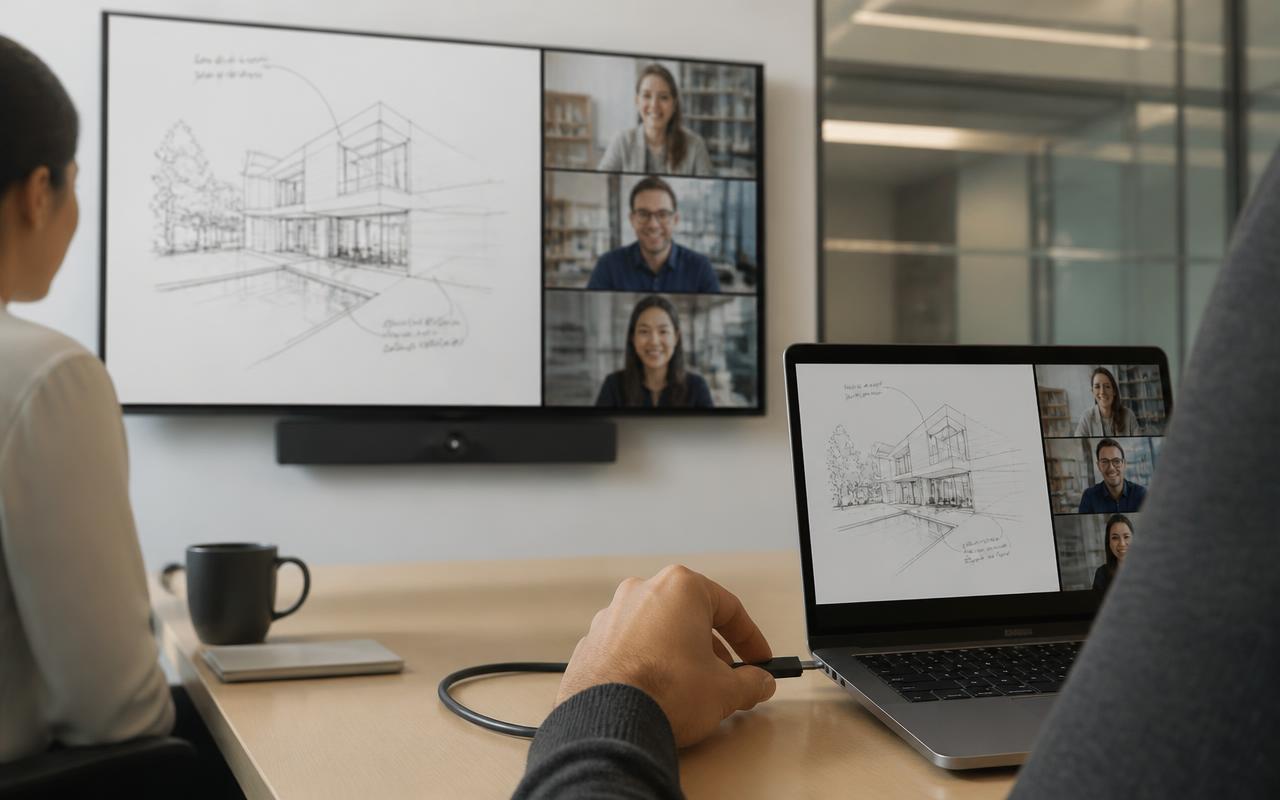

Single USB-C cable connecting a laptop to a 100 inch interactive display for BYOM video conferencing — BYOM/BYOD — one USB-C cable carries video, audio, touch-back, data and power.

Close-up of the 50MP AI ClearView camera and 8-microphone digital array on the top bezel of a UNiQ ultima interactive display — UNiQ ClearView AI 50MP camera (110° FOV) and ClearPickup 8-mic array built into the bezel.

UNiQ UD100ultima 100 inch interactive flat panel front view showing 4K UHD display and bezel controls — UD100ultima — 100" 4K UHD, 40-point IR touch, H9 anti-glare hardened surface.

Two 100 inch interactive displays in different rooms running a live Co-board shared whiteboard session with two-way video — Co-board — two ultima displays sharing one live whiteboard, no extra app or subscription.

Laptop, tablet and phone casting wirelessly to a 100 inch UNiQ interactive display over Wi-Fi — Wireless presentation from any device — MiraCast, Chromecast, AirPlay or the dedicated app.

Key Features at a Glance — UNiQ ultima 100 Inch

Answer first: the six things that separate the UD100ultima from a generic 100 inch touch screen are on-device AI, a 50MP conferencing camera, 40-point touch, Android 16 with OTA, Co-board dual-display linking and NFC-secured multi-user profiles.

AI-powered, on-device | NPU edge AI runs assistant, Q&A, transcription and image search without a cloud round trip
AI conferencing built in | ClearView 50MP AI camera at 110° FOV + ClearPickup 8-mic digital array + 2×20W ClearVoice speakers
40-point IR touch | ≤4ms response, ±2mm accuracy, H9 anti-glare anti-fingerprint surface, finger / pen / object
Android 16 with OTA | RK3576 SoC, A72×4 + A53×4 dual CPU, Mali G52 MC3 GPU, 8+128GB (16+256GB optional)
Co-board | Two ultima displays linked live across sites — no extra app, no subscription
Enterprise security & control | NFC card login, multi-user profiles, password policy, centralised DMS fleet management
One-cable BYOM/BYOD | Full-functional USB-C carries audio, video, touch-back, data, peripherals and power
Built to last | 100,000-hour LED life, 500 nits, 200000:1 contrast, OPS slot for a Windows module

What the Camera and Mic Array Remove From the BOQ

Answer first: on a typical 12-seat boardroom, the built-in AV stack removes a video bar, a table microphone set and a soundbar — usually ₹1.2–2.5 lakh of hardware plus its cabling and control integration.

Camera | UNiQ ClearView AI 50MP, 110° FOV, AI auto-framing and gesture control
Microphones | UNiQ ClearPickup AI 8-mic digital array with far-field pickup and noise rejection
Speakers | UNiQ ClearVoice bass-reflective full-range stereo, 2 × 20W = 40W
Platforms | Works with Zoom, Teams, Meet and the UNiQ Digital interface
BYOM | Optional USB-C dongle turns any visiting laptop into the meeting host in one tap
Optional add-ons | PTZ camera, speakerphone and extra microphones for halls over 12 metres deep

The AI Hardware Behind It (Not a Marketing Label)

Answer first: 'AI powered' on the ultima Series means dedicated silicon — a Neural Processing Unit running LLM workloads at the edge, alongside a dual-cluster ARM CPU that keeps 4K rendering and the UI on separate cores so AI tasks never stutter the whiteboard.

NPU | Neural Processing Unit supporting on-device LLM inference (Edge-AI)
CPU dual engine | ARM Cortex A72×4 for 4K-intensive and AI workloads + A53×4 for GUI and internal tasks
GPU | Mali G52 MC3 for smooth graphics and multi-window compositing
SoC | RK3576 supreme version with full-functional USB-C
Memory | 8GB RAM + 128GB storage standard, 16GB + 256GB optional for heavier AI and multi-window use
Why it matters | Transcription, gesture tracking and AI search keep working on a weak or offline network

Verified 100 Inch Specifications (UNiQ ultima Series)

Every figure below is taken from the UNiQ ultima Series datasheet for the UD100ultima. Specifications are taken from the UNiQ ultima Series product sheet and are subject to change without notice by the manufacturer.

Screen size | 100 inch
Touch | IR, 40-point, ≤4ms response, ±2mm accuracy — finger, pen or object
Touch surface | Anti-glare, anti-fingerprint, anti-fungus, scratch-proof, H9 hardness
Resolution / brightness | 4K UHD, DLED backlight, 500 nits adjustable
Contrast / refresh | 200000:1 static & dynamic; 60Hz native, up to 120Hz supported
Viewing angle / colour | 178°/178°, up to 80% NTSC, 16-bit (16.7M colours)
LED lifespan | Up to 100,000 hours
CPU / GPU | ARM Cortex Quad A72×4 + Quad A53×4 dual-engine; Mali G52 MC3 GPU
SoC | RK3576 (Supreme version, full-functional USB-C)
RAM / ROM | 8GB + 128GB standard (16GB + 256GB optional)
Operating system | Android 16 with OTA upgrade
Camera | UNiQ ClearView AI 50MP, 110° field of view
Microphone | UNiQ ClearPickup AI 8-mic digital array
Speakers | UNiQ ClearVoice full-range stereo, 2 × 20W = 40W
Wireless | Wi-Fi, Bluetooth, hotspot; MiraCast / Chromecast / AirPlay / dedicated app
Rear ports | 2× RJ45, RS232, USB 2.0-A, 2× USB 3.0-A, 2× Type-C (1 in / 1 out), 2× HDMI IN, 1× HDMI OUT, 2× USB-B touch, Audio Out, DP, Mic In, SPDIF, TF card, 1× OPS slot
Front ports | 2× USB-A 3.0, 1× Type-C, 1× Touch USB-B 3.0, 1× HDMI IN
Product size | 2259 × 1315 × 134 mm
VESA mount | 400(H) × 800(V) mm
Weight | 86 kg net / 142 kg gross
Power | AC 100–240V, 500W maximum, <0.5W standby
Operating range | 0°C–40°C, 10–90% RH
Security | NFC card login, multi-user profiles, advanced password protection
In the box | Remote, power cord, 2× stylus, wall mount, 1.8m touch USB cable

Why LiveInSmart for a 100 Inch Interactive Display

LiveInSmart is not a reseller. We are a single-vendor solution partner: Consultation → Requirement Analysis → Solution Design → Product Supply → Installation → Training → Annual Maintenance & Support. A 100-inch panel weighs 86 kg and needs a 400×800 VESA mount on a structurally sound wall, a 500W circuit and a commissioned network — this is not a courier-and-forget product, and one accountable team from survey to AMC is the difference between a working room and a warranty argument.

Structural wall survey before quoting — we confirm the wall can carry 86 kg plus mount before a panel is ordered
Live UNiQ ultima demo at the Hyderabad (Ameerpet) and Vijayawada (Ashok Nagar) experience centres
In-house installation crew — mounting, cabling, OPS commissioning, network onboarding and NFC user provisioning
Teacher / presenter onboarding included, plus AMC with defined response SLAs across Telangana and Andhra Pradesh
1000+ AV installations delivered — schools, colleges, government offices and corporate boardrooms
Single point of contact for the full 5–7 year life of the display

Get a Quote for 50MP AI Camera Interactive Display

Send us the room dimensions, seating count, the furthest viewing distance and how the room is used. You get a sized configuration with model, mount, accessories and an itemised price — usually the same working day. LiveInSmart is not a reseller. We are a single-vendor solution partner: Consultation → Requirement Analysis → Solution Design → Product Supply → Installation → Training → Annual Maintenance & Support.

WhatsApp us about 50MP AI Camera Interactive Display — pre-filled, instant reply
Call +91 99664 49628 — talk to an AV engineer, not a call centre
Free site survey, wall-load check and room-sizing report
Book a hands-on demo — Hyderabad (Ameerpet) or Vijayawada (Ashok Nagar)

Experience Centre · Hyderabad

Visit our Hyderabad showroom

Book a free demo at the LiveInSmart Hyderabad Experience Centre — listen to Dolby Atmos, see 4K laser projectors and walk through live home-automation scenes before you buy.

Pancom Business Centre, Mumbai Hwy, Nagarjuna Nagar Colony, Ameerpet, Hyderabad 500073

Call +919966449628 WhatsApp Open in Maps

Frequently Asked Questions

Can the built-in camera cover a full boardroom table?+

Yes. The 110° field of view covers a standard 12-seat boardroom from the wall, and AI auto-framing tightens on active speakers. For rooms deeper than about 12 metres we add an optional PTZ camera.

What resolution and brightness does a 100 inch interactive display support?+

The UNiQ UD100ultima runs 4K UHD on a DLED panel at 500 nits adjustable brightness, with a 200000:1 contrast ratio and 178°/178° viewing angle.

How many touch points does a 100 inch interactive panel support?+

The UD100ultima supports 40-point IR touch with response under 4ms and positional accuracy of ±2mm, usable with finger, pen or any other object.

What operating system does the UNiQ 100 inch interactive display run?+

It runs Android 16 with OTA upgrade support, on an RK3576 SoC with dual ARM Cortex CPU clusters (A72×4 + A53×4) and a Mali G52 MC3 GPU.

Can two 100 inch UNiQ displays be linked for remote collaboration?+

Yes. The Co-board feature connects two UNiQ ultima Series displays for real-time shared whiteboarding, content sharing and two-way audio and video, with no extra app or subscription.

How heavy is a 100 inch interactive display and what mount does it need?+

86 kg net (142 kg gross, boxed), measuring 2259 × 1315 × 134 mm, on a 400(H) × 800(V) mm VESA pattern. It needs a masonry or reinforced wall, or a heavy-duty floor stand rated above 100 kg.

Does LiveInSmart provide installation and AMC for 100 inch displays?+

Yes. Installation, teacher/presenter training and annual maintenance with defined response SLAs are provided in-house across Hyderabad, Vijayawada, Visakhapatnam and Warangal, and pan-India for project deployments.
